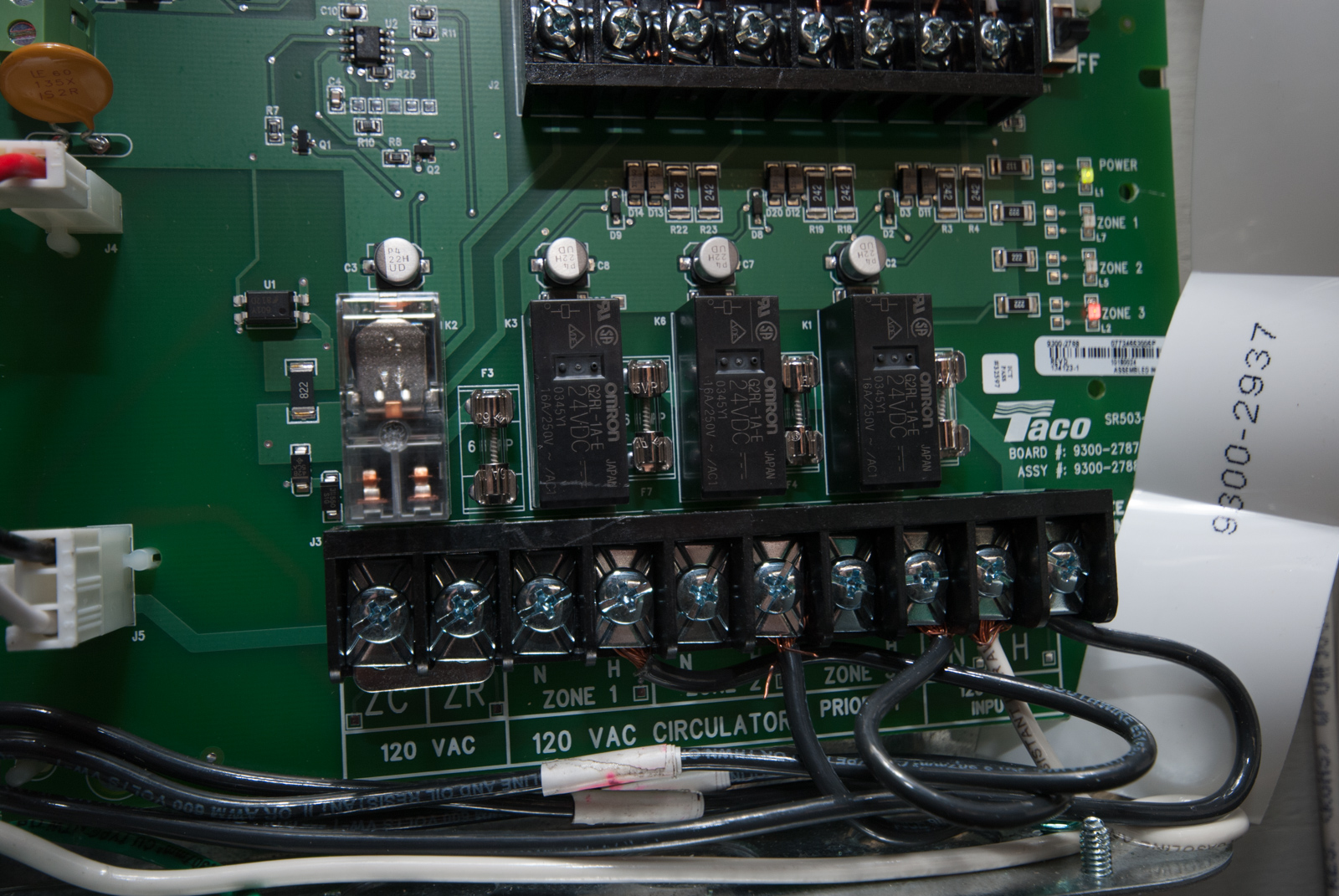

DSC_2816.jpg - Uh, not so fast. Now I have the opposite problem: Zone 9 (zone 3 here) circulator never stops running, even when no heat is being requested. I suspect that the #$%& duct damper sub-zoning system in the attic is not properly connected. Perhaps this is why someone had disconnected the wire here. I'll have to get to the bottom of this.

 11 | Uh, not so fast. Now I have the opposite problem: Zone 9 (zone 3 here) circulator never stops running, even when no heat is being requested. I suspect that the #$%& duct damper sub-zoning system in the attic is not properly connected. Perhaps this is why someone had disconnected the wire here. I'll have to get to the bottom of this. | DSC_2816.jpg | 11/19/17 3:39 PM | 1600x1071px | 812kB Download Original Image
