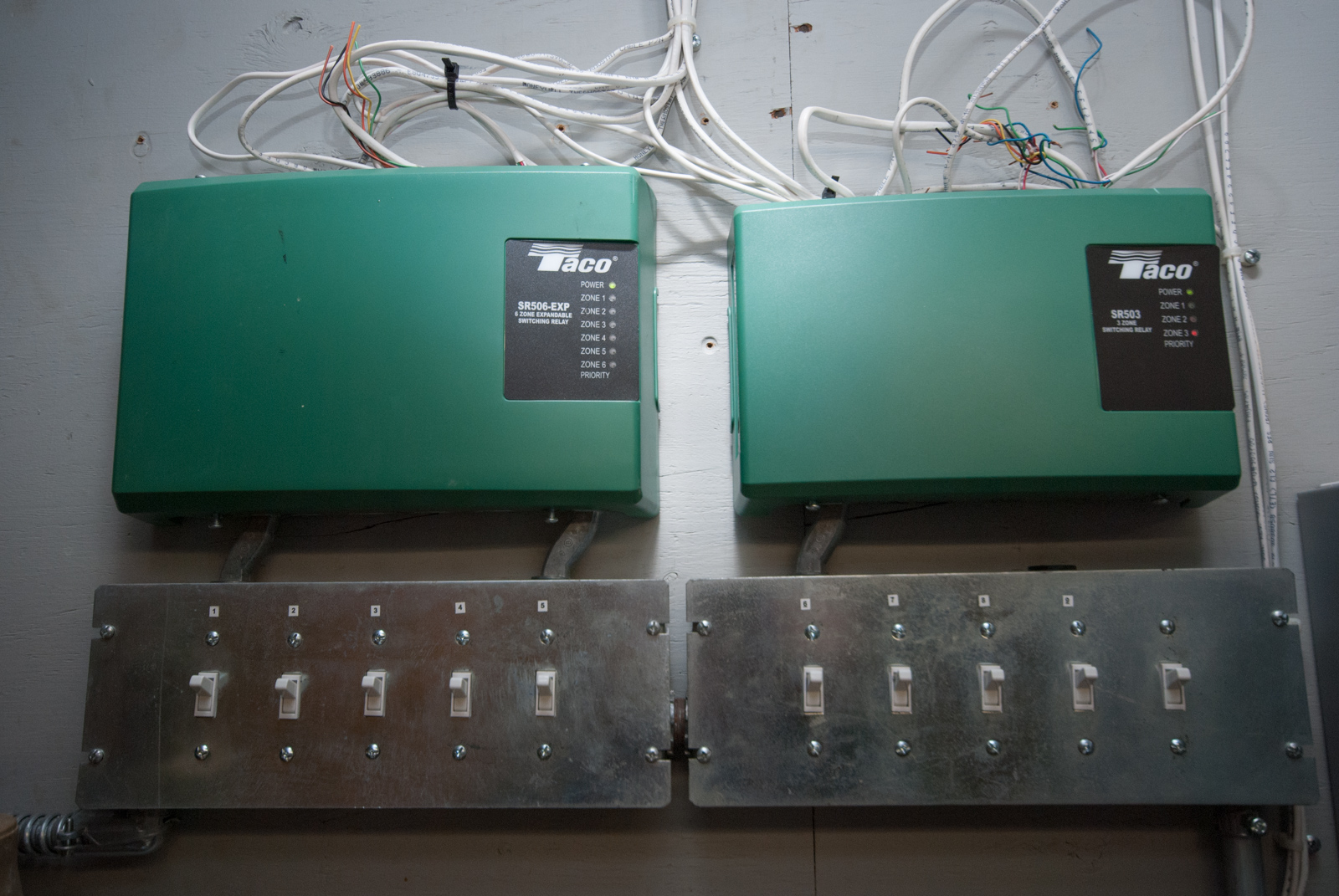

DSC_2812.jpg - I checked every accessible connection on the thermostats, the HZ322 and the air handler control panel.  I then headed to the basement to check the furnace area circuitry.  Here are the control panels for the heating zones.

 7 | I checked every accessible connection on the thermostats, the HZ322 and the air handler control panel. I then headed to the basement to check the furnace area circuitry. Here are the control panels for the heating zones. | DSC_2812.jpg | 11/13/17 10:15 AM | 1600x1071px | 710kB Download Original Image
