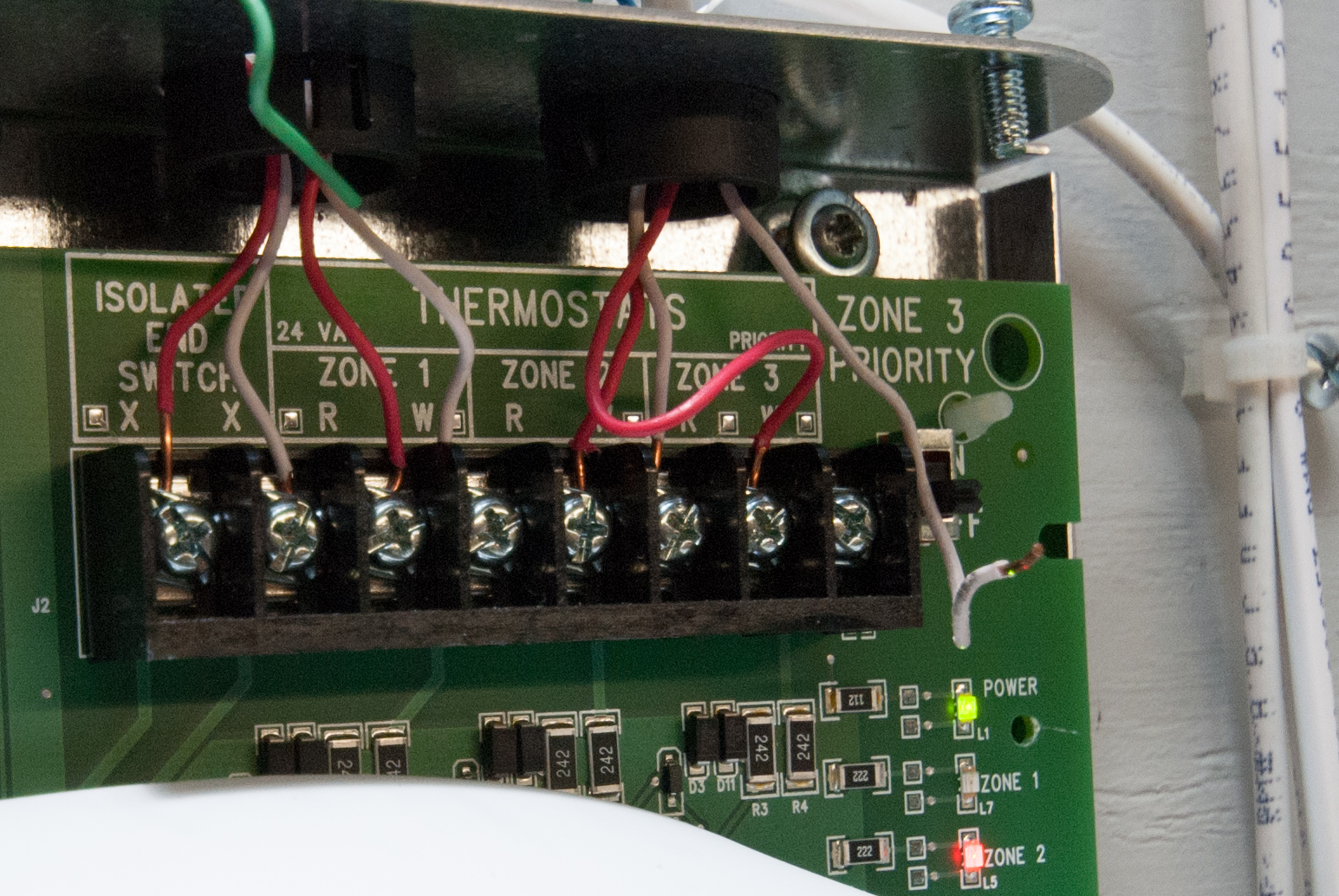

9 | ... Yes, why isn't that white 24VAC wire connected to the last terminal? That stupid wire is just hanging out all by itself. Logically, it should be providing power to the power relay for hot water circulator pump #9. So I connected it and waited. (Note: Zones 1 to 6 are in the first panel, so these three shown here are actually Zones 7, 8 and 9.) Was that wire intentionally, or accidentally, disconnected ? We may never know. | DSC_2806.jpg | 11/13/17 8:20 AM | 1545x1034px | 921kB | Original Image |
